Features
- It can connect off-line and on-line controller.
- Scan the Barcode or QR code to record the access events.
- Built-in buzzer for sound notification.
- Applied with EM card / Mifare card / Felica card / DESFire card / QR code / Barcode.
- Support ISO14443A / ISO14443B / ISO15693/ISO18092.
- Provides tamper switch.
- Ability to read multiple formats.
- With CPU watch-dog function to prevent malfunction.
- Provide OEM/ODM projects development.
Specification
| RFID frequency | 125KHz / 13.56MHz | ||
| Applicable cards | 125KHz: EM4100, EM4102, EM4200, TK4100, T5567
13.56MHz: Mifare 1 S50, NTAG203, NTAG213, NTAG215, NTAG216, FM11RF08, IS23SC4439, GT23SC4439, Mifare 1 S70, GT23SC4469 4K, FM11RF32, Mifare Ultralight , Mifare plus S 2K/4K, Mifare DESFire EV1 8K, Mifare DESFire EV2, SRT512, SRIX4K, ICODE SLI, ICODE-2, Tag-it HF-I standard, Tag-it HF-I Pro, Tag-it HF-I Plus, TI256, LEGIC, RC-S962(FeliCa), RC-S966(FeliCa Lite-S), NFC Tag, LRI2K | ||
| Decode Capability | 1D Symbologies | UPC-A、UPC-E、EAN-13、ISBN10、ISBN13、EAN-8、CODE39、CODE11、CODE93、CODE128 INTERLEAVED25、INDUSTRIAL25、MATRIX25、S25、CODE 32、TRIOPTIC39、GS1_128、CODABAR、MSI、TELEPEN、RSS、GS1_DATABAR、GS1_DATABAR_LIM、GS1_DATABAR_EXP | |
| 2D Symbologies | QR、MICRO QR、PDF417、MICROPDF、DATAMATRIX、MAXICODE、AZTEC、CODABLOCK_F | ||
| Output format (Interface) | RS-232 / RS-485 / Wiegand 26/34bits | ||
| Reading range(QR code) | |||
| 5cm | 16cm | ||
| Mounting | Surface Mount | ||
| Power input | DC 12V | ||

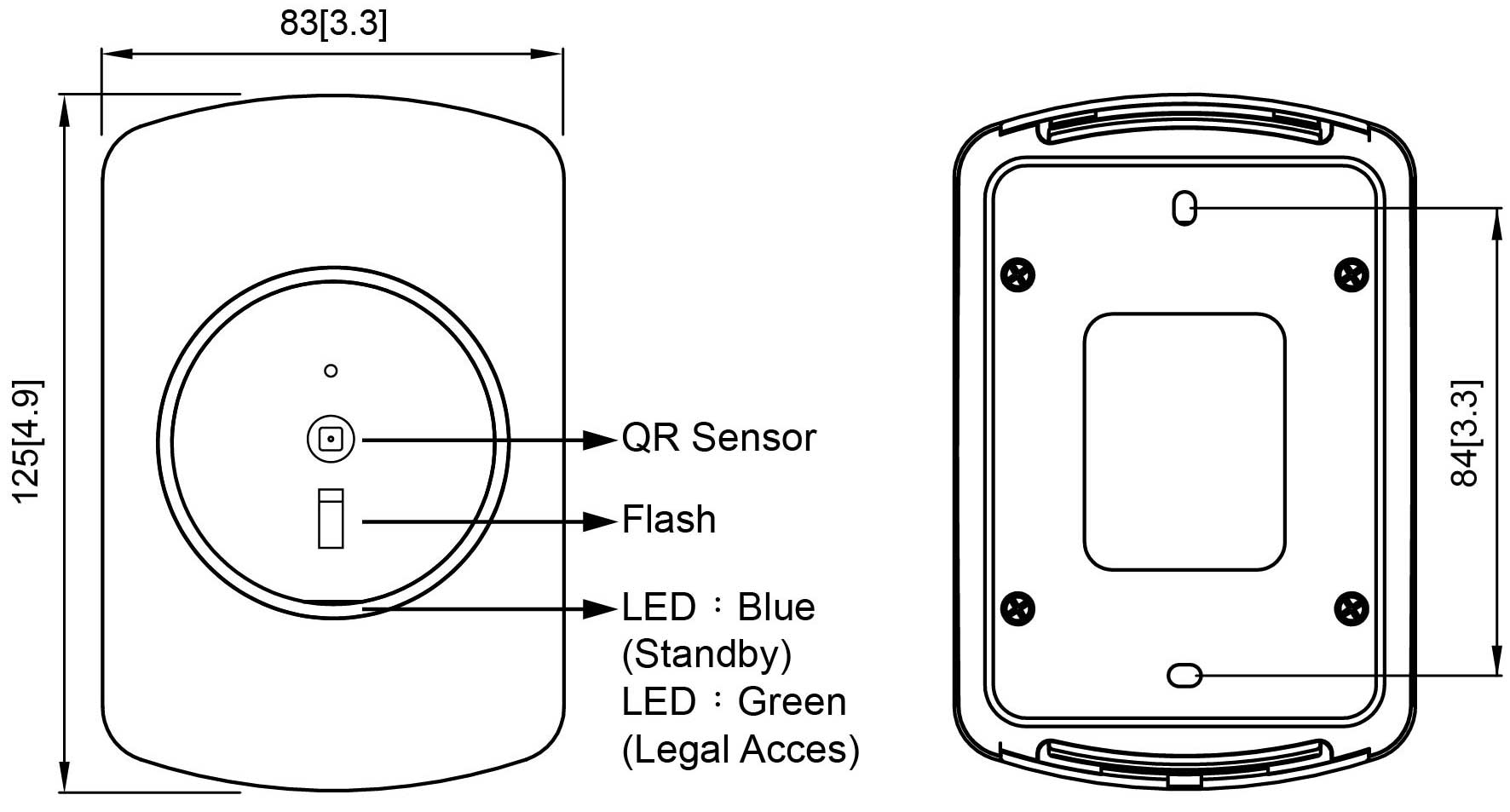

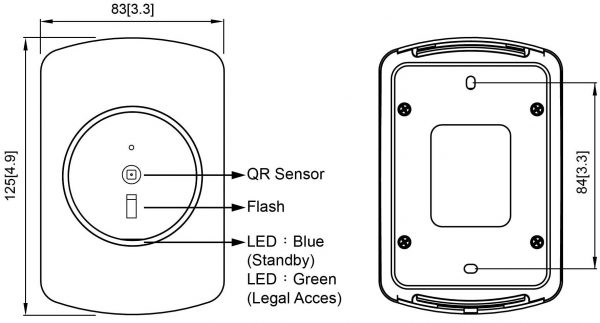

Dimension: Unit: mm[inch]
Ordering information
| PQ-510HW | : 125KHz FSK HC & QR Code(Barcode) proximity reader, Wiegand 26 & 34bits |
| PQ-510H2W | : 125KHz FSK HC & QR Code(Barcode) proximity reader, HC(Wiegand 26~37bits,Depending on card),QR code(Wiegand 26 & 34bits) |
| PQ-510NW | : 125KHz ASK EM & QR Code(Barcode) proximity reader, Wiegand 26 & 34bits |
| PQ-510M0W34 | : 13.56MHz Mifare & QR Code(Barcode) proximity reader, Wiegand 34bits, Read card number: in reverse |
| PQ-510M0W34S | : 13.56MHz Mifare & QR Code(Barcode) proximity reader, Wiegand 34bits, Read card number: in positive |
| PQ-510MDR2HS | : 13.56MHz Mifare & Mifare DESFire & QR Code(Barcode) proximity reader, RS-232, Hexadecimal, Read card number: in positive |
| PQ-510R5 | : QR Code(Barcode) reader, RS-485 |
| PQ-510W | : QR Code(Barcode) reader, Wiegand 26 & 34bits |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Mã: PQ-510NR2D01
Danh mục: Đầu đọc thẻ RFID
Thẻ: Đầu đọc vừa thẻ Proximity 125Khz vừa qrcode Pegasus PQ-510NR2D01
Brand: Pongee
| Trọng lượng | 0.5 kg |
|---|---|
| Kích thước | 15 × 10 × 5 cm |
