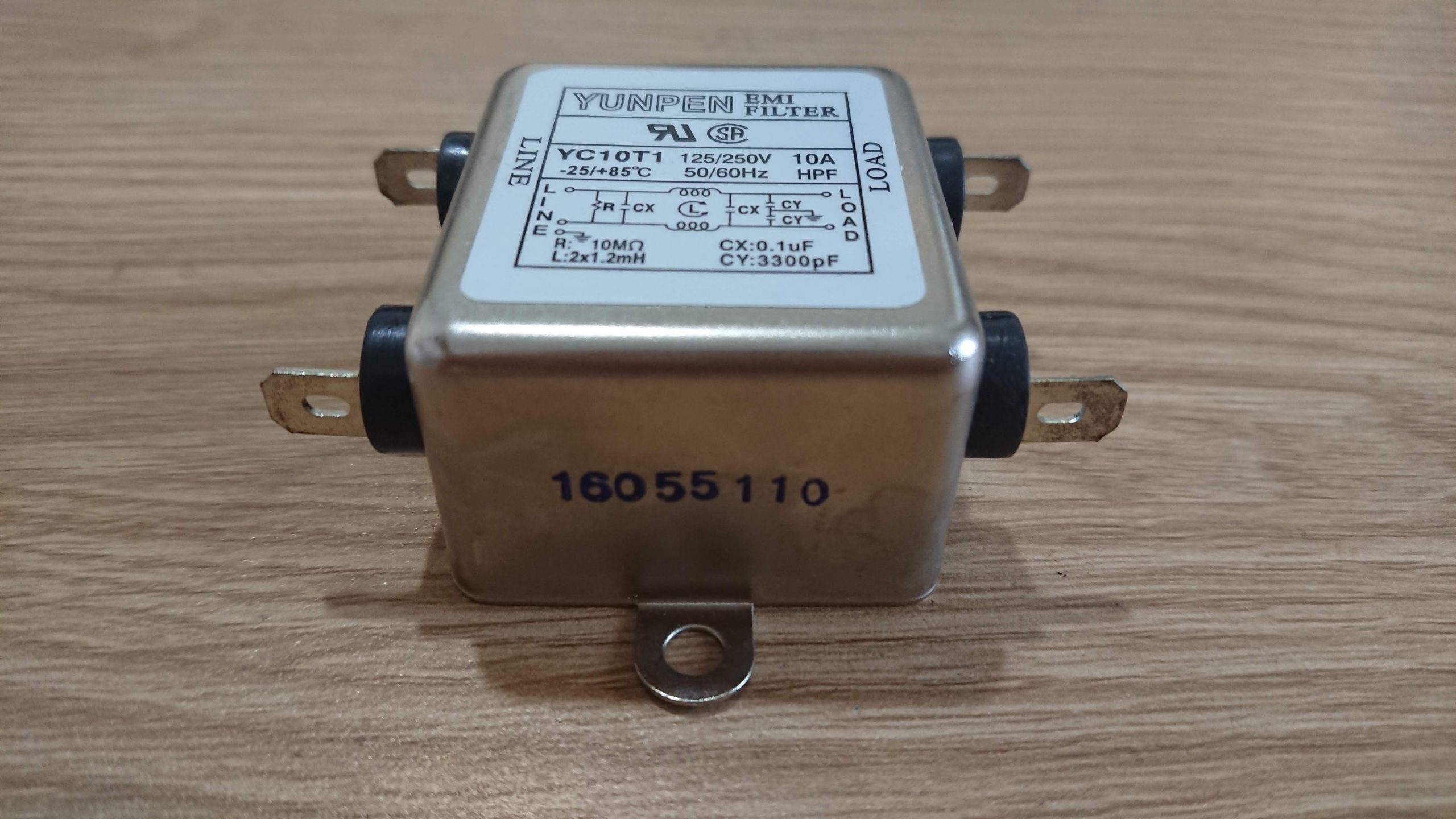

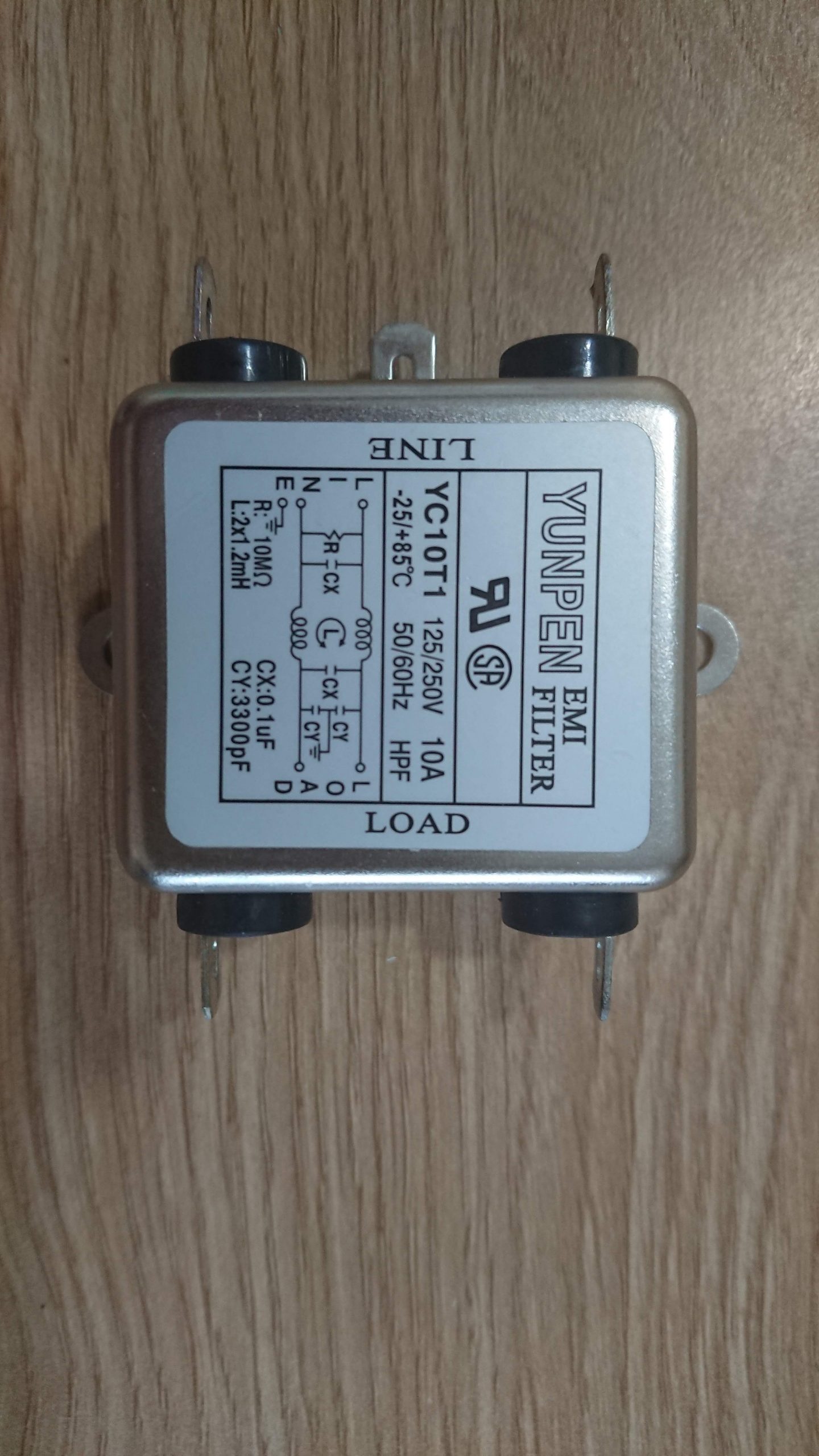

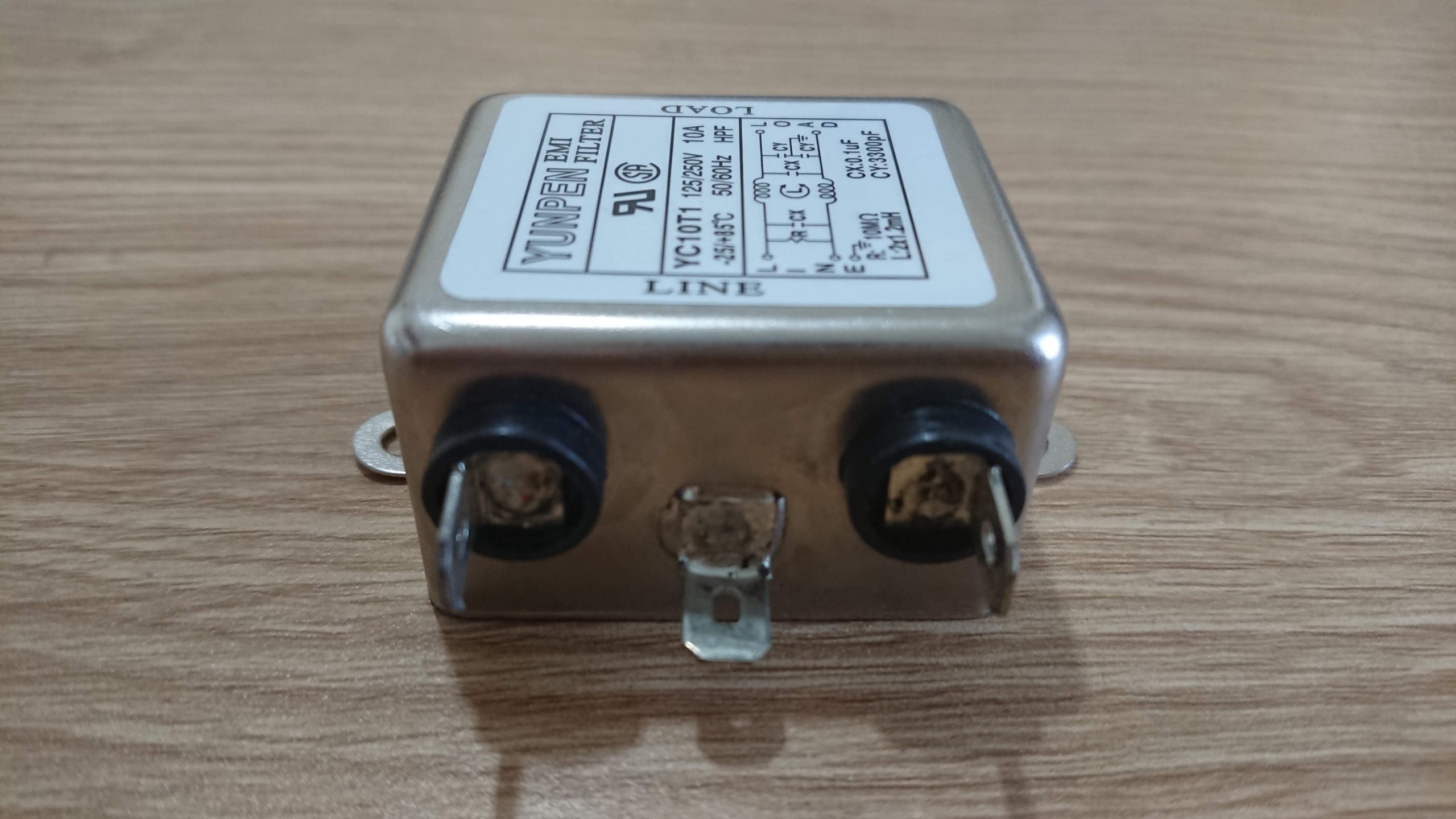

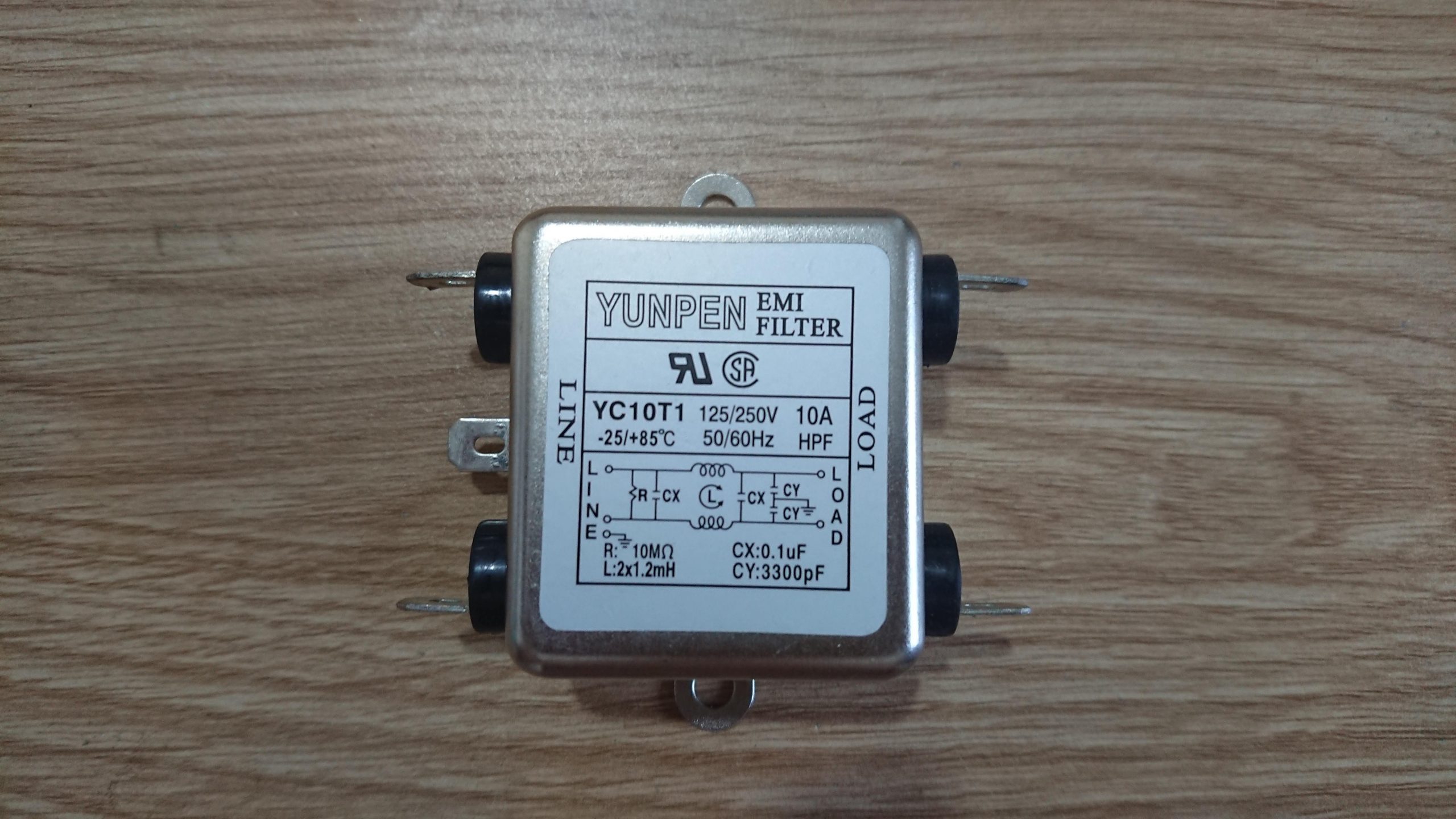

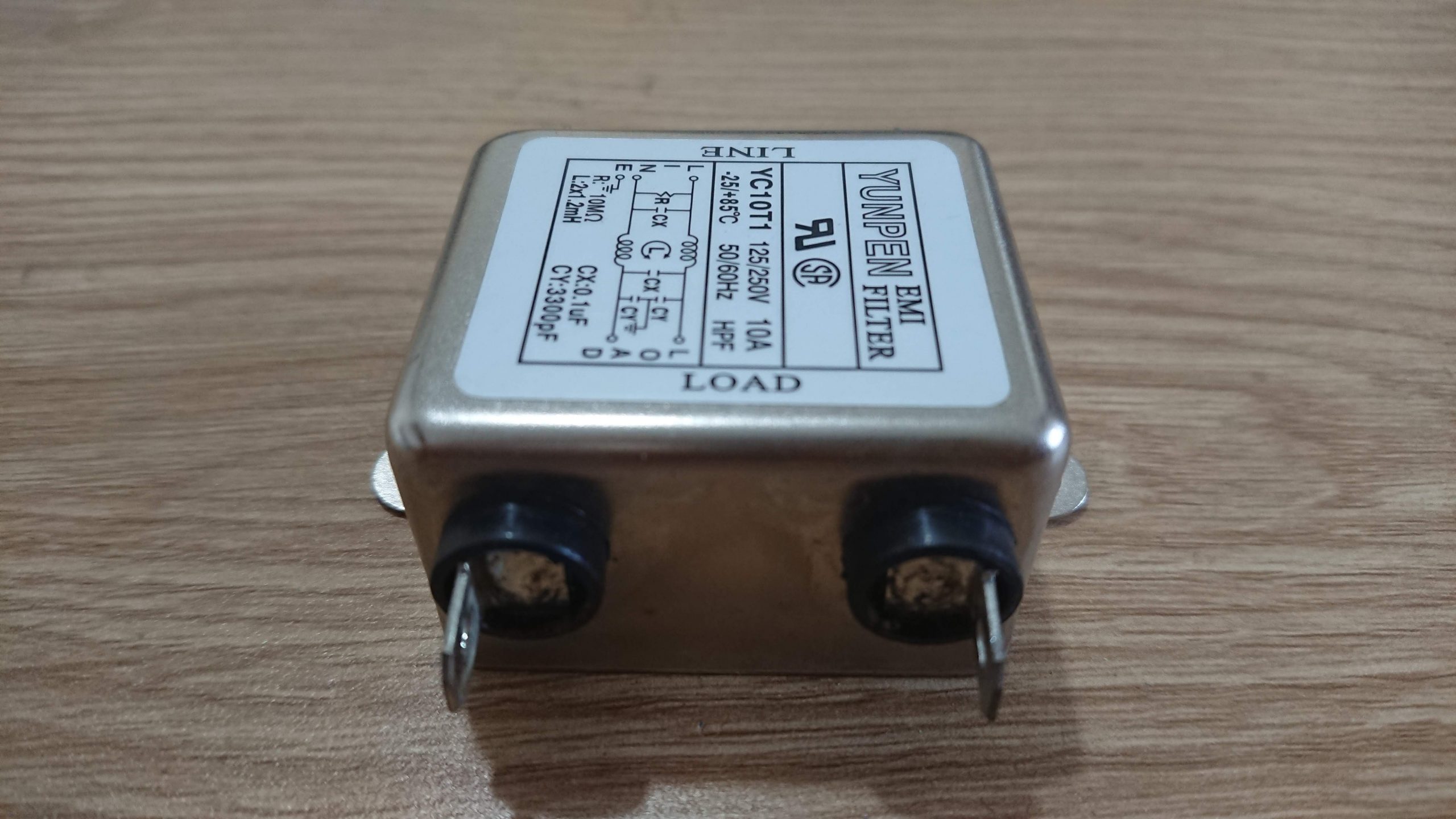

Bộ lộc nhiễu EMI-FILTER Pegasus R-27-YK10T1/125/250V

Bộ lộc nhiễu nguồn điện EMI-FILTER Pegasus R-27-YK10T1/125/250V

Availability:

Còn hàng (có thể đặt hàng trước)

Add to Wishlist
Compare

450,000₫

Còn hàng (có thể đặt hàng trước)

Compare
1. FEATURES

    • General purpose filter providing effective EMI suppression of both line-to-line and line-to-ground noise.
    • Low cost
    • 250 Faston terminals
  • All parts are approved by UL, CSA and VDE.
  • The values of CX,CY are optional.
  • With or without resistor.

Bộ lộc nhiễu EMI-FILTER Pegasus R-27-YK10T1/125/250VBộ lộc nhiễu EMI-FILTER Pegasus R-27-YK10T1/125/250V

2. SPECIFICATIONS

ITEM / MODEL
YK01T1
YK03T1
YK06T1
YK10T1
RATED VOLTAGE
125/250V AC
125/250V AC
125/250V AC
125/250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGELINE TO LINE

LINE TO GROUND

1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
CX0.1uF Max0.1uF Max0.1uF Max0.1uF Max
CY3300pF Max3300pF Max3300pF Max3300pF Max
R1M,10M/ohm1M,10M/ohm1M,10M/ohm1M,10M/ohm
INDUCTANCE3.7mH1.8mH0.7mH0.3mH
ATTENUATIONNORMAL MODE 25dbMIN

COMMON MODE 25dbMIN

0.50 ~ 35MHZ
0.10 ~ 30MHZ
0.70 ~ 50MHZ
0.20 ~ 50MHZ
0.90 ~ 50MHZ
0.60 ~ 50MHZ
1.30 ~ 50MHZ
1.30 ~ 50MHZ

3. NOISE ATTENUATION (0.1uF,3300pF)

COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE
CURRENT
FREQUENCY-MHZ
RATING
0.15
0.5
1.0
5.0
10.0
30.0
YK01T1
1A
26
35
38
41
41
37
YK03T1
3A
21
27
32
39
39
42
YK06T1
6A
13
22
27
39
46
35
YK10T1
10A
7
16
21
35
41
36
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YK01T1
1A
9
19
24
47
47
43
YK03T1
3A
8
19
25
41
39
34
YK06T1
6A
4
10
15
36
36
30
YK10T1
10A
5
14
19
30
36
36

4. CIRCUIT

Bộ lộc nhiễu EMI-FILTER Pegasus R-27-YK10T1/125/250V

5. DIMENSION

YK01T1~YK10T1

Bộ lộc nhiễu EMI-FILTER Pegasus R-27-YK10T1/125/250V

Mã: R-27-YK10T1/125/250V Danh mục: Thẻ: Brand:
Trọng lượng0.1 kg
Kích thước10 × 5 × 5 cm
